JP-OWA Series is a display system designed specifically for outdoor environments, offering features such as waterproof, dustproof, moisture-proof, explosion-proof, anti-theft, and lightning protection. It provides high-definition and high-brightness display with adjustable brightness ranging from 1500cd/㎡ to 3000cd/㎡. Additionally, the system incorporates intelligent brightness adjustment to automatically adapt to the surrounding environment and reduce light pollution.
The intelligent temperature control system regulates heat dissipation based on the internal temperature of the device, ensuring reliable operation under various temperature conditions. Users can set up scheduled power on/off according to their needs, with options for daily, weekly, and monthly cycles.
With an IP55 Or IP65 protection rating, this display system offers protection against lightning and electric leakage, ensuring safety and reliability. It is well-suited for a wide range of demanding outdoor environments, including commercial districts, high-traffic telephone booths, bus stops, airports, train stations, piers, parks, squares, leisure areas, tourist attractions, high-end residential areas, the food and beverage industry, schools, city roads, real estate developments, government and corporate promotions, and more.
Furthermore, when combined with compatible application software, this system enables various industry-specific applications, providing users with enhanced functionality and convenience.
Selection of screen sizes, designs and configurations available

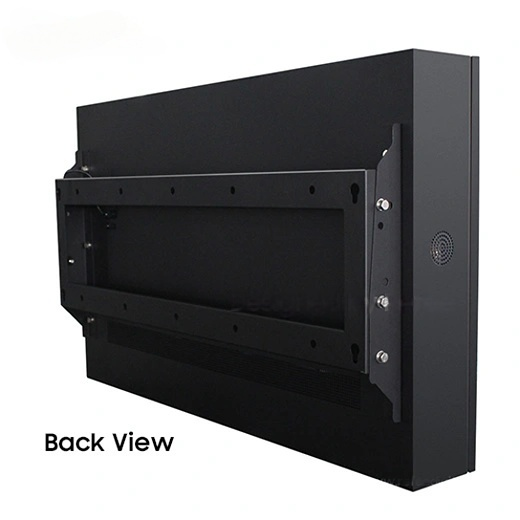

Freestanding or wall mounted displays available
Single-sided or double-sided options available
Manufactured from rugged mild steel and sealed to NEMA 3/4 standards
Plays 4K or 1080p full HD content
High brightness – 2500cd/m2, 3500cd/m2, or any other brightness level required.
IP55 or IP65 full weather proof housing
Air Curtain to direct a constant flow of air across the display
Internal heating system
Water resistant dual security locks
Anti-Reflective
Tempered glass to prevent vandalism
Full UK or International installation service available
Touchscreen can be added as an additional option
Built in Windows/ Android/ Linux media player
WIFI or RJ45 connectivity to update content from a remote location using CMS
| LCD Panel | Screen size | 43inch | 55inch | 65inch | ||||
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 | |||||
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | |||||
| Contract Ratio | 1200:1 | 1200:1 | 1200:1 | |||||
| Brightness | 2500nits | 2500nits | 2500nits | |||||
| Hardware &OS | CPU | Quad Core | Quad Core | Quad Core | ||||
| RAM | 2GB | 2GB | 2GB | |||||
| Storage | 16GB | 16GB | 16GB | |||||
| Android System | Android 7.1 | Android 7.1 | Android 7.1 | |||||
| Network | WiFi | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n | ||||
| Ethernet network | 100M/1000M | 100M/1000M | 100M/1000M | |||||
| I/O Port | MicroSD slot | Micro SD card x 1 | Micro SD card x 1 | Micro SD card x 1 | ||||
| USB port | USB 2.0 x 2 | USB 2.0 x 2 | USB 2.0 x 2 | |||||
| HDMI | HDMI output x1 | HDMI output x1 | HDMI output x1 | |||||
| Earphone | Audio Socket (3.5mm) | Audio Socket (3.5mm) | Audio Socket (3.5mm) | |||||
| Format | Video format | MPEG-1,MPEG-2,MPEG-4,H.263, H.264,VC1,RV etc.,Max 1920x1080p | MPEG-1,MPEG-2,MPEG-4,H.263, H.264,VC1,RV etc.,Max 1920x1080p | MPEG-1,MPEG-2,MPEG-4,H.263, H.264,VC1,RV etc.,Max 1920x1080p | ||||
| Audio format | MP3/WMA | MP3/WMA | MP3/WMA | |||||
| Image format | JPEG,BMP etc | JPEG,BMP etc | JPEG,BMP etc | |||||
| Others | Speaker | 2*10W | 2*5W | 2*5W | ||||
| OSD Menu | Multi-language OSD | Multi-language OSD | Multi-language OSD | |||||
| Power supply | AC100v-240v | AC100v-240v | AC100v-240v | |||||
| Power consumption | 400W | 450W | 500W | |||||
| General information | Case Material | Metal case | Metal case | Metal case | ||||
| Case Color | Black | Black or white | Black | |||||
| Storage Temp | (-20 — 65 degree) | (-20 — 65 degree) | (-20 — 65 degree) | |||||
| Working Temp | (0 — 50 degree) | (0 — 55 degree) | (0 — 55 degree) | |||||
| Storage/Working Humidity | (10 — 90﹪ ) | (10 — 90﹪ ) | (10 — 90﹪ ) | |||||
| Certificates | CE, FCC&Rohs | CE, FCC&Rohs | CE, FCC&Rohs | |||||
✔ High-Quality Screen: Immerse yourself in a world of vibrant visuals with our JPOK Display, featuring an explosion-proof glass screen that guarantees durability and safety. With its industrial high-performance screen, enjoy unparalleled image clarity, brightness, and stability, ensuring a viewing experience like no other. Upgrade to 4K for crisp, colorful images that leap off the screen.
✔ Built-In Operating System (OS): Seamlessly manage content files and control presentations with our customized built-in operating system. Tailor the display experience to suit your customers’ interests, ensuring a seamless and enjoyable interaction.
✔ Easy Data Control: Take charge effortlessly with two operating options – remote control via wireless connection (WiFi, 3G/4G/5G, or Bluetooth) or simple USB Plug and Play functionality.
✔ Storage: With the demand for high-quality media files increasing, JPOK Display offers ample storage capacity, both internally (ranging from 1GB to 8GB) and externally via USB, HDD, and SSD, ensuring you never run out of space for your content.
✔ IPS Commercial Grade Panel: Say goodbye to viewing angle limitations and color reproduction issues with our IPS (In-plane switching) commercial-grade panel, designed to deliver superior performance compared to TFT screens.
✔ 24/7 Continuous Usage: Designed for uninterrupted performance, JPOK Display can operate continuously for long hours and days, making it perfect for commercial use in any setting
✔ Centralized Terminal Devices Management: Take control with our cloud-based content management system, allowing real-time control and insights into smart digital players, empowering remote management of content, display schedules, and more.
✔ Eco-Friendly Power Timer: Save energy and reduce costs with our eco-friendly power timer feature, allowing you to schedule hourly, daily, or weekly power on and off times. Enjoy efficient energy consumption and the convenience of standby mode during periods of inactivity.
✔ Multiple Versatile I/O Ports: Experience seamless connectivity with a wide range of audio and video inputs and outputs, including SD card, USB Flash, HDMI, VGA, DVI, USB, and RJ45 ports, ensuring fast dynamic picture quality without delays or frame loss.
✔ Multiple Configuration: Customize your JPOK Display with multiple level options, offering processors from Dual-Core to Octa-Core and OS versions from Android 7.1 to Android 12. Choose your preferred OS between Android, Windows, Linux, or standalone OS for a personalized experience.
✔ Lifetime Technical Support: Enjoy peace of mind with our lifetime technical support, ensuring assistance throughout the warranty period and beyond. Our dedicated team is here to provide free technical support for any inquiries or issues you may encounter.
✔ Warranty: Rest assured with our full one-year commercial warranty (Extended warranty optional) covering defects resulting from faulty parts, materials, or manufacturing. JPOK Display is built to withstand 24/7 use in public spaces, ensuring long-lasting performance and customer satisfaction.
